RISC32 Processor with FPGA Implementation


Computer Architecture

Overview

Designed an unpipelined, multicycle 32-bit RISC-V integer microprocessor. Working on a three person team, we mapped the processor’s datapath, wrote the hardware logic in SystemVerilog, and deployed the architecture to an iceBlinkPico FPGA board to run Assembly code.

My Role & The Tech Stack

  • Team Division: A 3 person team to handle RTL design, testbench simulation, and hardware-software integration.
  • Hardware: iceBlinkPico FPGA Board
  • Software: SystemVerilog, RISC-V Assembly, OSS CAD Suite, Icarus Verilog
  • Skills: Multicycle Datapath Design, State Machine Logic, Memory Mapping, Hardware Simulation

The Process

1. Processor Architecture

Designed the processor using Harvard architecture, creating a 32-bit address space with separate 4kB instruction and 4kB data memories. The core logic required us to implement the base RV32I instruction set. Because this was a multicycle processor, we created a finite state machine to control the flow of data through the Fetch, Decode, Execute, Memory, and Writeback stages.

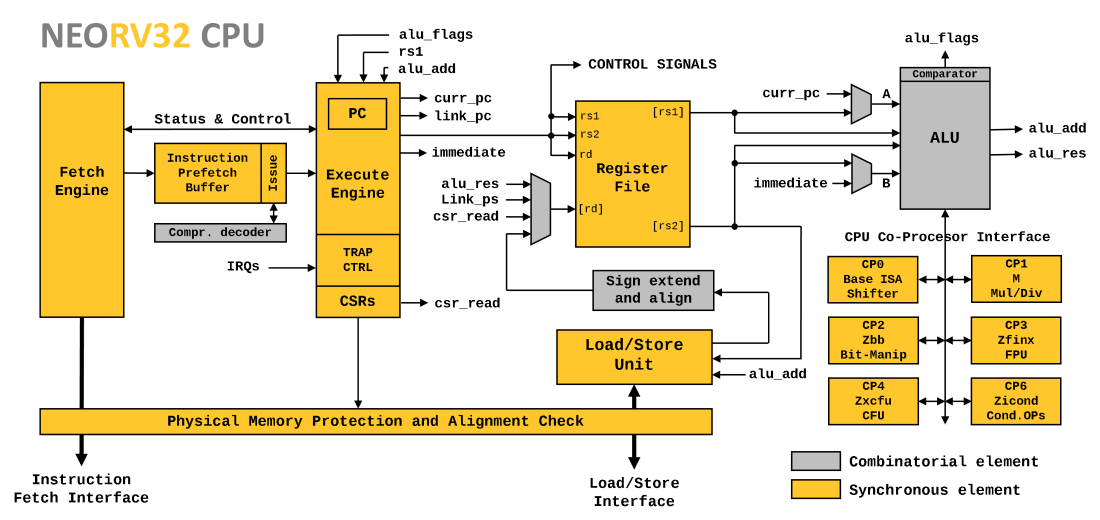

Block diagram of architecture Caption: Block diagram of architecture (did not create diagram).

2. RTL Simulation

Before dealing with hardware, we designed the software then validated it. We used the OSS CAD Suite and Icarus Verilog (iverilog) to build testbenches. By simulating examples for each class of RV32I instructions, we saw signal waveforms and verified the proper operation of the arithmetic logic unit (ALU) and control structures in software.

simulation data Caption: Checking the PC timing and actions.

3. Hardware

To show the processor was functional, we used RISC-V Assembly code. The assembly program used our memory mapped addresses and hardware timers to interact with the board’s RGB LEDs, verifying that our custom hardware could accurately fetch, decode, and execute software instructions in the real world.

*Caption: Hardware blinking LED colot depending on which stage it is on.*

Technical Growth

Building a CPU from the ground up demystifies the barrier between software and physical circuitry. Taking this design from theoretical state diagrams to simulated SystemVerilog, and finally to physical hardware running our own assembly code, was an test of digital logic design and computer architecture principles.
